Before you make a Helix Stairs 3D objects, you need to specify the width, height and number ofsteps that are intended. As an example I give a wide diameter of 15 stairs with a height of 26 and the number of steps as much as 13 pieces.
AutoCAD Tutorial 3D Helix Stairs
Steps to start is as follows:
- In the top view, the shape of a circle with a diameter of 15, and a transverse line from the center of the circle to the side of the circle.
AutoCAD Tutorial 3D Helix Stairs

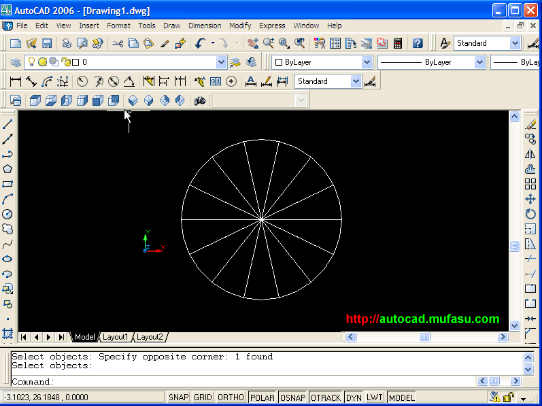

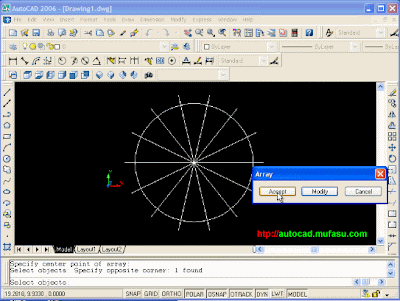

- Use the array to form a line that wrapped around the whole circle.
AutoCAD Tutorial 3D Helix Stairs
- After that, using the trim command, cut all the circles and objects such as reserving a piece ofpizza. : D Use the command pedit to form a polyline object.
AutoCAD Tutorial 3D Helix Stairs
- Use the array command again to form an object to circular objects.
AutoCAD Tutorial 3D Helix Stairs
- In the front view and use the command 3dorbit, try to view a 3D look. and reserving one object (the others move vertically by 2). Once all the objects to form vertically, you can create a circle on the bottom of the object triangle.
AutoCAD Tutorial 3D Helix Stairs
- Use extrude commands to form a 3D object into a form.
